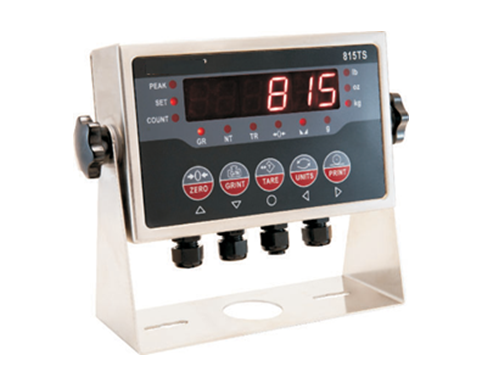

815TS – Digital Weighing Indicator

LED Industrial Weight Indicator

Features:

• 8”, 6 digits, 7 segments, LED display
• Indication of up to four units of measurements: kg, lb, oz and g
• Indication of gross, net and tare
• Indication of stability and centre of zero
• Easy wiring screw terminals
• Weight, peak, set point, and piece counting
• Password protected calibration menu
• Physical and electronic sealing via audit trail function
• Two set point output relays
• Advance analogue, digital and average filtering
• Two independent RS232 serial communication ports
• One independent RS485 serial communication port
• Weather proof stainless steel enclosure, NEMA4X / IP66
• Breather vent to avoid condensation inside

Approvals:

• NTEP: Class III/IIIL 10,000d
• Measurement Canada: Class III / IIIHD 10,000d / 20,000d

Download Datasheet
